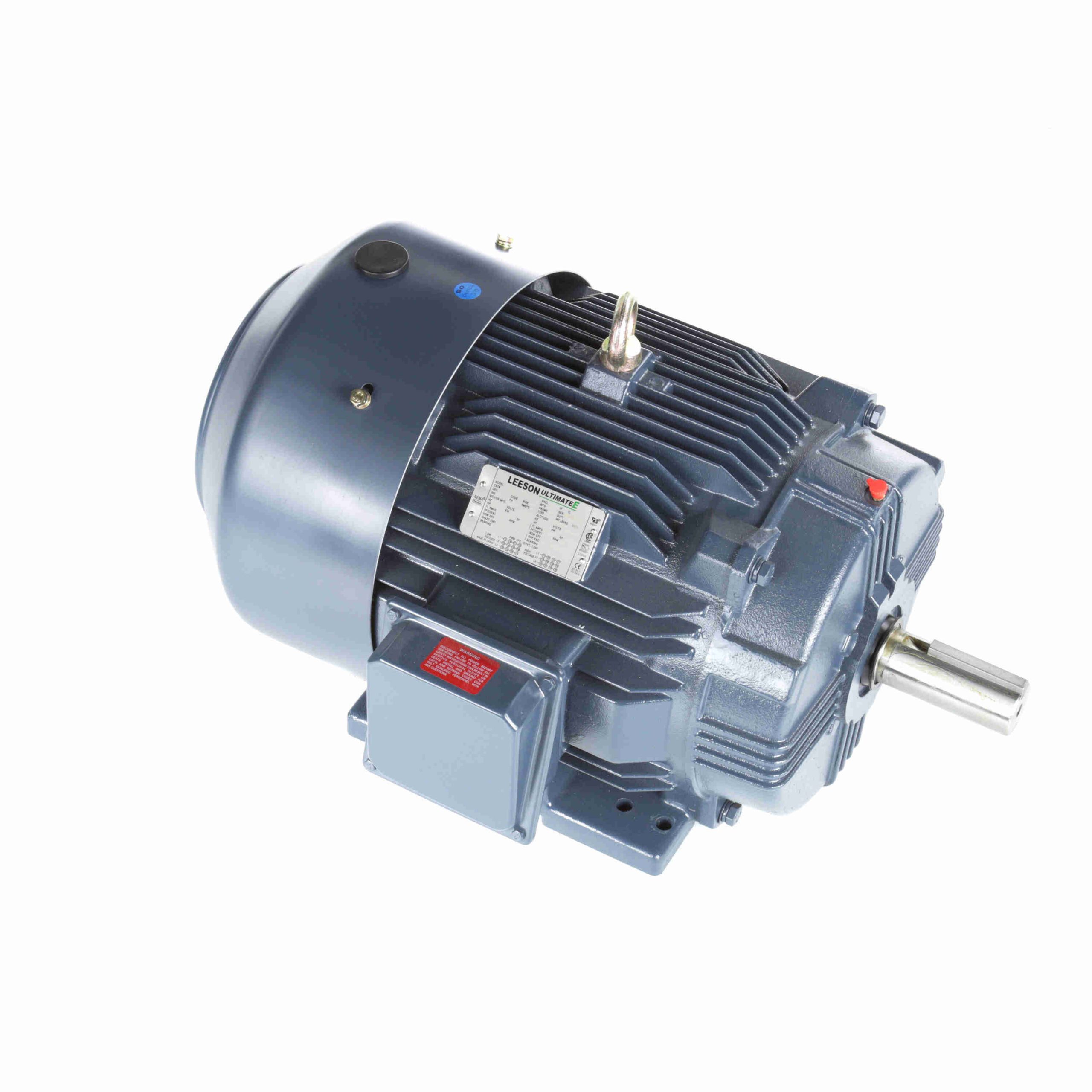

| UPC: | 691720044582 | Weight: | 445 LB |
| Packaged Length: | 31 IN | Packaged Width: | 21 IN |
| Packaged Height: | 20 IN |
| Output HP: | 20 Hp | Output KW: | 14.9 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 52.0/26.0 A | Speed: | 1180 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 91.7 % | Power Factor: | 79 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 286T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6311 | Opp Drive End Bearing Size: | 6211 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Wye Start Delta Run Or Inverter |
| Poles: | 6 | Rotation: | Reversible |
| Resistance Main: | .5617 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 28.14 in |
| Frame Length: | 10.98 in | Shaft Diameter: | 1.875 in |
| Shaft Extension: | 4.62 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 145.00 | 577.0 | 152.00 | 171.0 | 0 | 40.0 | 20.00 | |
| No Load | 13.00 | 50.0 | 0.00 | 0.0 | 1,200 | 4.5 | 20.00 | |
| 1/3 | 141.00 | 542.0 | 126.00 | 142.0 | 400 | 20.00 | ||
| 2/3 | 121.00 | 465.0 | 160.00 | 180.0 | 800 | 20.00 | ||
| Full Load | 26.00 | 100.0 | 89.00 | 100.0 | 1,180 | 79.0 | 20.00 | |
| Break-Down | 81.00 | 312.0 | 199.00 | 224.0 | 1,095 | 67.0 | 20.00 | |
| Pull-Up | 133.00 | 512.0 | 128.00 | 144.0 | 600 | 20.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 13.00 | 14.10 | 16.90 | 21.00 | 26.00 | 29.40 | 31.90 |
| Rated Output (KW) | 0.60 | 4.30 | 8.20 | 12.20 | 16.30 | 18.80 | 20.60 |
| Efficiency (%) | 0.0 | 87.5 | 91.0 | 91.7 | 91.7 | 91.0 | 90.6 |
| Power Factor (%) | 4.5 | 38.0 | 61.0 | 73.0 | 79.0 | 81.0 | 81.5 |
| Speed (RPM) | 1,200 | 1,195 | 1,190 | 1,185 | 1,180 | 1,178 | 1,175 |
| Temp. Rise @ FL | 65.0 | 85.0 | 105.0 | ||||
| Torque (ft-lbs) | 0.00 | 22.00 | 44.00 | 66.50 | 89.00 | 102.00 | 112.00 |
