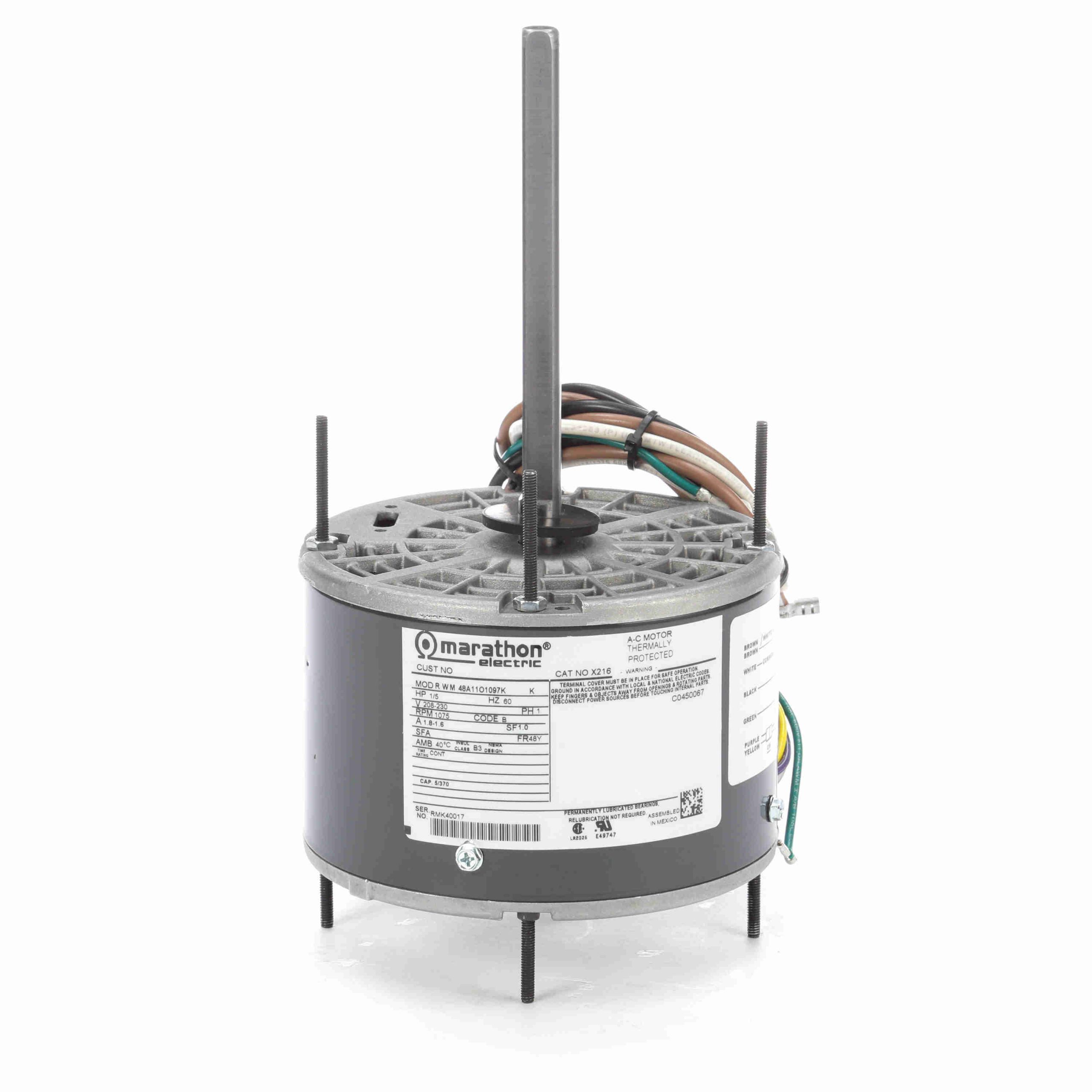

048A11O1097 – Marathon 0.20 HP Condenser Fans HVAC/R Motor, 1 phase, 1200 RPM, 208-230 V, 48Y Frame, OPAO – X216
048A11O1097 Marathon Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856048912 |
Weight: |
10 LB |
| Packaged Length: |
13.25 IN |
Packaged Width: |
7 IN |
| Packaged Height: |
6.94 IN |
Nameplate Specifications
| Output HP: |
0.20 Hp |
Output KW: |
0.15 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
1.8-1.6 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
55 % |
Power Factor: |
89.5 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
B |
| Frame: |
48Y |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
10 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Round – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
9.81 in |
| Frame Length: |
3.25 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
6.06 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
2.10 |
0.0 |
20.70 |
0.0 |
964 |
0.40 |
0.0 |
0.20 |
| Pull-Up |
3.00 |
0.0 |
4.10 |
0.0 |
18 |
0.50 |
0.0 |
0.20 |
| Locked-Rotor |
2.90 |
0.0 |
5.30 |
0.0 |
0 |
0.50 |
0.0 |
0.20 |
Load Characteristics
| % of Rated Load |
0 % |
100 % |
| Current (Amps) |
0.84 |
1.60 |
| Rated Output (KW) |
0.11 |
0.26 |
| Efficiency (%) |
0.0 |
55.0 |
| Power Factor (%) |
59.5 |
89.5 |
| Speed (RPM) |
1,200 |
1,102 |
| Temp. Rise @ FL |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
15.30 |
